DMS Multi-input DC Signal Ratio Meter
(This model has been discontinued. Please refer to MMS as the replacement model.)
FEATURES:
◆ 5-digit display: -19999 to 99999 Count
◆ Provides DC24V loop current power supply for equipment
◆ Dual communication ports, RS485 Modbus RTU x 2
◆ Two analog outputs 4-20mA x 2
◆ Four relay settings with programmable delay time / deadband
◆ Input configurable as 0-20/4-20mA or 0-5V/1-5V/0-10V
◆ Output configurable as 0-20/4-20mA or 0-5V/1-5V/0-10V
◆ Digital scaling, with customizable display and output ratios
◆ Ultra-short enclosure design (depth 100mm) to save panel space
◆ Ultra-slim profile design to minimize space usage
◆ High accuracy (0.05% F.S) / High linearity (0.05% F.S)
DMD DC Voltage and Current Meter
(This model has been discontinued. Please refer to MMD as the replacement model.)
FEATURES:
◆ 5-digit display: -19999 to 99999 Count
◆ Dual communication ports, RS485 Modbus RTU x 2
◆ Two analog outputs 4-20mA x 2
◆ Four relay settings with programmable delay time / deadband
◆ Output configurable as 0-20/4-20mA or 0-5V/1-5V/0-10V
◆ Digital scaling, with customizable display and output ratios
◆ Ultra-short enclosure design (depth 100mm) to save panel space
◆ Ultra-slim profile design to minimize space usage
◆ High accuracy (0.2% F.S +2°C) / High linearity (0.2% F.S +2°C)
DMP Stroke, Water Level, and Position Meter (Potentiometer)
(This model has been discontinued. Please refer to MMP as the replacement model.)
FEATURES:
◆Input signal: 0~10KΩ
◆5 digits display:-19999~99999 Count
◆Dual RS485 Modbus RTU
◆Dual analog outputs:0-20mA/4-20mA or 0-5V/1-5V/0-10V
◆4 relays outputs with programmable delaytime and deadband
◆Selectable sampling speed: (High/Medium/Low)
DMR Resistance Temperature Detector (RTD) Temperature Control Meter (PT100)
(This model has been discontinued. Please refer to MMR as the replacement model.)
FEATURES:
◆Input signals: PT100Ω / PT500Ω / CU10Ω
◆Sensor protection to prevent unwanted relay operation
◆Switch to display:-100.0~400.0℃ or -100.0~800.0 ℉
◆Dual RS485 Modbus RTU
◆Dual analog outputs:0-20mA/4-20mA or 0-5V/1-5V/0-10V
◆4 relays outputs with programmable delaytime and deadband
◆Selectable sampling speed: (High/Medium/Low)
DMT Thermocouple Temperature Control Meter
(This model has been discontinued. Please refer to MMT as the replacement model.)
FEATURES:
◆ Input signal selectable: K / E / J / R / S / B Type
◆ Unit switch: Fahrenheit / Celsius
◆ Temperature compensation can be set
◆ Dual communication ports, RS485 Modbus RTU x 2
◆ Two analog outputs 4-20mA x 2
◆ Four relay settings with programmable delay time / deadband
◆ Output configurable as 0-20/4-20mA or 0-5V/1-5V/0-10V
◆ Ultra-short enclosure design (depth 100mm) to save panel space
◆ Ultra-slim profile design to minimize space usage
◆ High accuracy (0.2% F.S +0.3°C)
DMG Modbus-RTU Communication Protocol Transmission Meter
(This model has been discontinued. Please refer to MMG / MASTER as the replacement models.)
FEATURES:
◆5 digits display:-19999~99999 Count
◆Selectable mode: Master or Slave
◆Master mode：Read data from device with Modbus RTU protocol
◆Slave mode：Write data into MMG via PLC / PC
◆Data from: Unsigned Int / Signed Int (selectable)
◆Baudrate: 4800-9600-19200-38400 ; Address:1-255
◆4 relays outputs with programmable delaytime and deadband
◆Output selectable: DC 0-20/4-20mA or DC 0-5V/1-5V/0-10V
MMPG Digital Display Meter for Linear Scales (Electronic Scale)
Features:
◆ High-resolution 8-digit display
◆ 5V TTL square wave input with A/B phase and forward/reverse function
◆ A/B phase input for up/down counting, with 4x frequency multiplication for high-resolution calculation
◆ Dedicated counting IC with speeds up to 5 m/s
◆ Input frequency up to 1 MHz
◆ Zero-setting button for arbitrary point initialization and start position configuration
◆ Four relay groups with settings for delay time and inactive zones
◆ Communication port with RS485 Modbus RTU
◆ Output configurable as 0-20/4-20mA or 0-5V/1-5V/0-10V
◆ Digital scaling, with customizable display and output ratios
◆ Ultra-short enclosure design (depth 100mm) to save panel space
◆ Ultra-slim profile design to minimize space usage
DML-Flow Digital Meter
FEATURES：
◆Dual displays: 0~50000 for flow speed/ 0~9999999 for flow volume
◆RS485 Modbus RTU
◆Analog output:DC 4-20mA for flow speed
◆1 relay output for flow volume
◆Pulse output for flow volume
DML-Flow Digital Meter
FEATURES：
◆Dual displays: 0~50000 for flow speed/ 0~9999999 for flow volume
◆RS485 Modbus RTU
◆Analog output:DC 4-20mA for flow speed
◆1 relay output for flow volume
◆Pulse output for flow volume

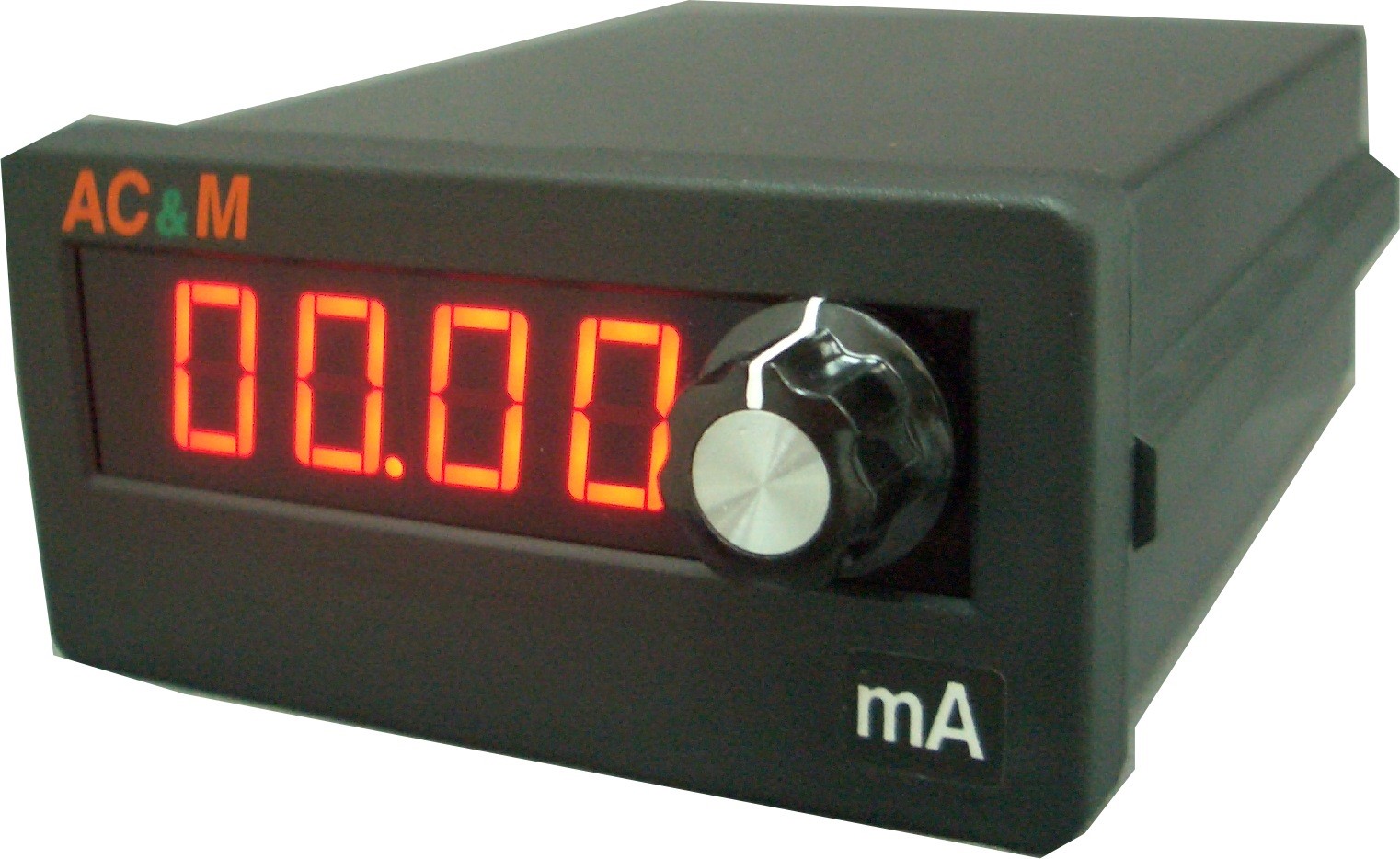

DMX-DC Current Generator
FEATURES：
◆Generates DC 0~20mA or DC 4~20mA
◆4 digits display:0~9999 Count
◆With switch knob to control current value
◆High accuracy ±0.15%FS
DMX-DC Current Generator
FEATURES：
◆Generates DC 0~20mA or DC 4~20mA
◆4 digits display:0~9999 Count
◆With switch knob to control current value
◆High accuracy ±0.15%FS
DMU-RPM Digital Meter
FEATURES：
◆Input signals:open collect(NPN),voltage pulse,relay contact,PNP
◆RS485 Modbus RTU
◆Analog output:0-20mA/4-20mA or 0-5V/1-5V/0-10V
◆2 relays outputs with programmable delaytime and deadband
DMU-RPM Digital Meter
FEATURES：
◆Input signals:open collect(NPN),voltage pulse,relay contact,PNP
◆RS485 Modbus RTU
◆Analog output:0-20mA/4-20mA or 0-5V/1-5V/0-10V
◆2 relays outputs with programmable delaytime and deadband
